(H)RW12-12(F) outdoor high-voltage AC drop type fuses (hereinafter referred to as “this fuse”) are applicable to outdoor hanging distribution systems with a frequency of 50Hz and rated voltages of 10kV. It gets installed as a protective element for circuits or electrical equipment in any case the power system faces an overload or short-circuit fault. When normally operating as the fuses, it connects in series within the power line. Ine, with the fuse in a taut state and the movable joint locked. When a fault occurs in the circuit, the fault current causes the fuse to melt, the movable joint is released, and the fuse tube quickly drops, cutting off the circuit and providing safety protection for the maintenance of the circuit and equipment. Load-type fuses add elastic contacts and arc-extinguishing covers on the basis of ordinary types, used for breaking and closing load currents in power systems. The fuse complies with technical standards like GBT 15166.3-2008 “High voltage AC Fuses Part 3:Jet Fuses” and DLT 640-1997 “Technical Conditions for Ordering Outdoor AC High Voltage Drop-type Fuses and Fuses”. Product Description The Outdoor High Voltage Ceramics & Polymers Drop Out Fuse Cutout is a crucial electrical protection device designed to ensure the safety and reliability of high-voltage power distribution systems. Utilizing advanced ceramics and polymer materials, this fuse cutout is ideal for protecting electrical circuits from overloads and faults in both overhead and underground power lines. Its robust construction and high reliability make it a suitable choice for various industrial and utility applications Product Features High Voltage Operation The Fuse Cutout is designed to handle high voltage levels, providing protection in systems up to 36kV, making it ideal for medium- and high-voltage power distribution networks. Advanced Materials Constructed with a combination of ceramics and polymer materials, this Fuse Cutout offers superior insulation, durability, and resistance to environmental stresses such as humidity, temperature variations, and UV exposure. Drop-Out Mechanism The Fuse Cutout features a drop-out mechanism that safely disconnects the fuse when a fault occurs, ensuring the protection of the entire electrical system. Current Limiting The current-limiting functionality ensures the fuse operates effectively under fault conditions, minimizing the risk of damage to connected equipment and reducing fault duration. Weather Resistance Built for outdoor environments, the Fuse Cutout is weather-resistant and performs reliably even in harsh climates, such as extreme temperatures and heavy rain. Compact and Lightweight Design The Fuse Cutout is designed with a compact and lightweight structure, making it easy to install and suitable for space-constrained environments, especially in overhead power lines. Easy Installation and Maintenance The Fuse Cutout is engineered for simple installation and requires minimal maintenance, making it cost-effective in the long term. Product Advantages Enhanced Protection The Fuse Cutout protects against overcurrent, short circuits, and overloads, ensuring the safety and longevity of electrical systems and preventing catastrophic damage to transformers, cables, and other equipment. Long Service Life Thanks to its ceramic and polymer construction, this Fuse Cutout is highly resistant to corrosion, wear, and mechanical stresses, resulting in a long operational life. Low Maintenance Requirements The Fuse Cutout is designed for minimal upkeep, which reduces downtime and maintenance costs, ensuring continuous and reliable operation. Versatile and Flexible Suitable for both overhead and underground power lines, this Fuse Cutout is adaptable to various applications, including substations, power distribution lines, and industrial facilities. Superior Weather Resistance Built with advanced materials, the Fuse Cutout can endure extreme weather conditions, making it an excellent choice for areas with harsh environmental challenges. Cost-effective Operation Due to its durable design and efficient performance, the Fuse Cutout helps in lowering operational costs by reducing faults and minimizing the need for repairs or replacements. Product Applications Power Distribution Networks: Protects overhead and underground electrical systems by disconnecting faulted circuits, ensuring continuous power distribution and preventing further damage. Substation Protection: Provides reliable protection for substations and transformers, helping to maintain the efficiency and safety of the power grid. Industrial Applications: Ideal for large industrial setups requiring high voltage protection and fault isolation to safeguard machinery and equipment. Renewable Energy Systems: Used in wind and solar energy systems for power distribution and ensuring safe and effective operation in renewable power plants. Utility Providers: Widely used by utility companies for outdoor high-voltage installations where reliability and durability are essential for long-term system protection. FAQ 1. What is a Fuse Cutout? A fuse is an electronic device used to protect electrical circuits. When the current exceeds a specified value, the fuse breaks the circuit by fusing the melt through the heat it generates. 2. What voltage range does this Fuse Cutout support? The HRW12-12F Fuse Cut is for installation on the high-voltage side of the distribution transformer or distribution line branch line,Not exceeding 36 kV used as overload and short-circuit protection of the transformer and line, and to divide and close the rated load current. 3. How does the drop-out mechanism work? Falling fuse to make the fault current quickly fuse, through the arc in the tube heating, decomposition of gas, the formation of pressure, will be quenched in the tube, after the formation of open, the arc will be extinguished. 4. What materials are used in the construction of the Fuse Cutout? Divided into ceramic and composite materials, it consists of two parts: the insulating support and the fuse tube. 5. How easy is it to maintain the Fuse Cutout? Easy and simple to use, with durable materials that reduce the number of breakdowns and increase efficiency. 6. Can the Fuse Cutout be used in industrial applications? Can be used in various large facilities, substation transformers, power stations, new energy sources and other places to provide stable protection. Previous: (H)RW10-40.5 Series Outdoor High Voltage Current Limiting Drop Out Fuse Cutout Main Technical Parameters

No.	Item		Unit	Technical parameter
1	Rated frequency		Hz	50
2	Rated voltage		kV	12
3	Rated current of the same family of fuse components		A	≤100	≤200
4	Rated breaking current		kA	12.5	16
5	Rated short-term power frequency withstand voltage	To ground (dry/wet test)	kV/min	42/1
		Fracture surface (dry/wet test)		48/1
6	Lightning impulse withstand voltage	To the ground	kV	75
		Fracture		85
7	Creepage distance		mm	≥372(E-level anti fouling)
8	Mechanical lifespan		Times	500
9	Service life		Year	≥20
Note:If the altitude is higher than 1000m,the rated insulation level should be adjusted accordingly.

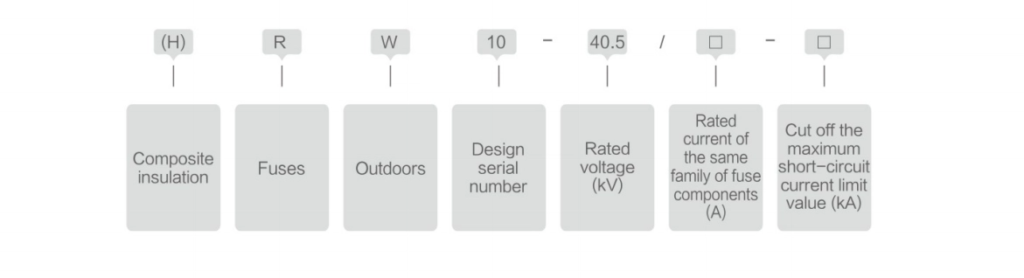

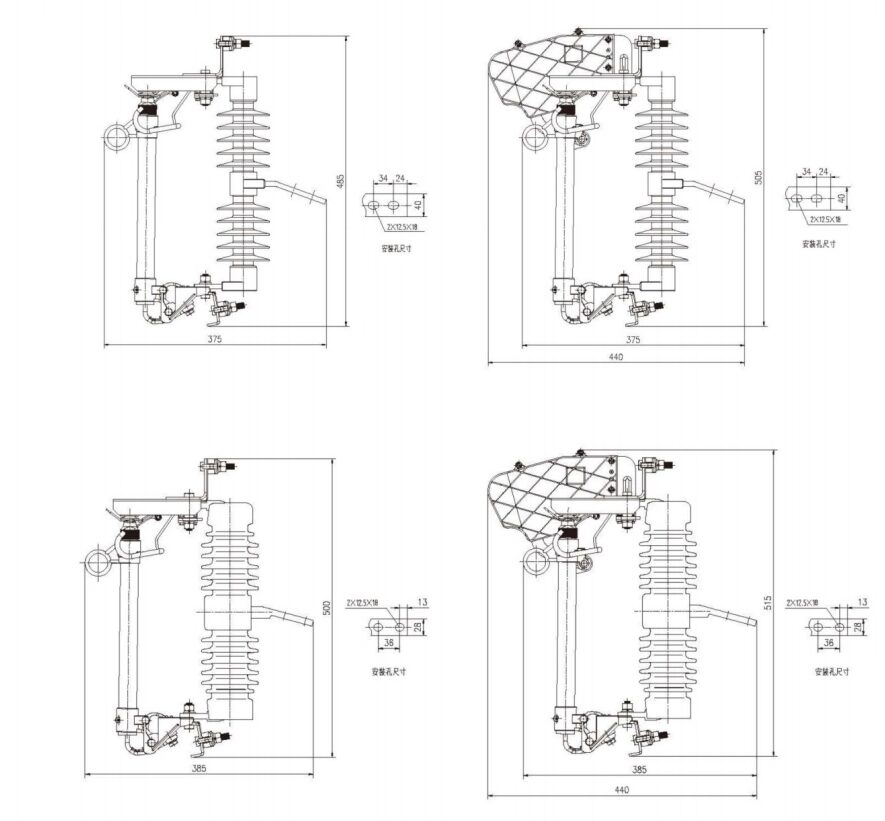

Environmental Conditions 1.Alitude:≤1000m.If the altitude is higher than 1000m,the rated insulation level should be adjusted accordingly; 2. Surrounding air temperature:maximum 40℃,minimum -25℃,daily temperature difference of 25K; 3. Humidity:Daily average relative humidity ≤95%,monthly average relative humidity≤90%; 4. Solar radiation intensity:0.1W/cm²; 5. Pollution level:not less than level d; 6.Ice thickness:≤10mm; 7. Outdoor wind speed (wind pressure):35m/s(700Pa); 8. Earthquake tolerance (horizontal acceleration):0.3g. Model and Meaning Ordering Notice Please indicate the product name and model; Please indicate the rated voltage,rated current of the same family of fuse components,and rated breaking current; Please indicate whether spare parts are required; Please indicate the order quantity and delivery time. Appearance and Installation Dimensions
